CIRCUITS AND THEIR PARAMETERS
GIT (v1.0)

The EvoApproxLibLITE is the lightweight version of our library of approximate circuits with formally guaranteed error parameters. Hardware as well as software models are provided for each circuit.

Circuit name MAE WCE MRE EP power area Download model
mul16u_BMC [1] 0.00 % 0.00 % 0.00 % 0.00 % 2.202 3203.0 Verilog PDK45Verilog fileC fileMatlab MEXPython PYX
mul16u_AQ1 [1] 0.00000003 % 0.000000093 % 0.0000044 % 64.06 % 2.188 3118.5 Verilog PDK45Verilog fileC fileMatlab MEXPython PYX
mul16u_5FA [1] 0.00000057 % 0.0000018 % 0.000071 % 98.12 % 2.135 3019.9 Verilog PDK45Verilog fileC fileMatlab MEXPython PYX
mul16u_DAE [1] 0.0000045 % 0.000021 % 0.0005 % 98.71 % 1.952 2800.8 Verilog PDK45Verilog fileC fileMatlab MEXPython PYX
mul16u_F6B [1] 0.000075 % 0.00042 % 0.0067 % 99.84 % 1.648 2404.2 Verilog PDK45Verilog fileC fileMatlab MEXPython PYX
mul16u_CK3 [1] 0.00073 % 0.0047 % 0.047 % 99.98 % 1.231 1900.2 Verilog PDK45Verilog fileC fileMatlab MEXPython PYX
mul16u_8VH [1] 0.011 % 0.058 % 0.46 % 100.00 % 0.791 1284.9 Verilog fileC fileMatlab MEXPython PYX
mul16u_GPF [1] 0.10 % 0.41 % 2.07 % 100.00 % 0.482 746.2 Verilog PDK45Verilog fileC fileMatlab MEXPython PYX
mul16u_HGP [1] 1.54 % 6.15 % 15.90 % 100.00 % 0.106 269.4 Verilog PDK45Verilog fileC fileMatlab MEXPython PYX
mul16u_HGY [1] 18.75 % 75.00 % 87.99 % 100.00 % 0.0003 2.3 Verilog fileC fileMatlab MEXPython PYX

Reported error parameters: MAE - Mean Absolute Error (Mean Error Magnitude), WCE - Worst-Case Absolute Error (Error Magnitude / Error Significance), MSE - Mean Squared Error, MRE - Mean Relative Error (Mean Relative Error Distance), WCRE - Worst-Case Relative Error, EP - Error Probability (Error Rate)  |  Reported design parameters: power - power consumption in mW, area - area on the chip in um2, dly - delay, all values obtained using Synopsys DC (45 nm PDK, 1 V, 25 ℃)  |  Error parameters marked by were verified using a formal technique analyzing all possible input combinations. There is a formal guarantee that the error is not worse than the shown value. The exact values are included at the beginning of each C file and Verilog file.

COMPARISON

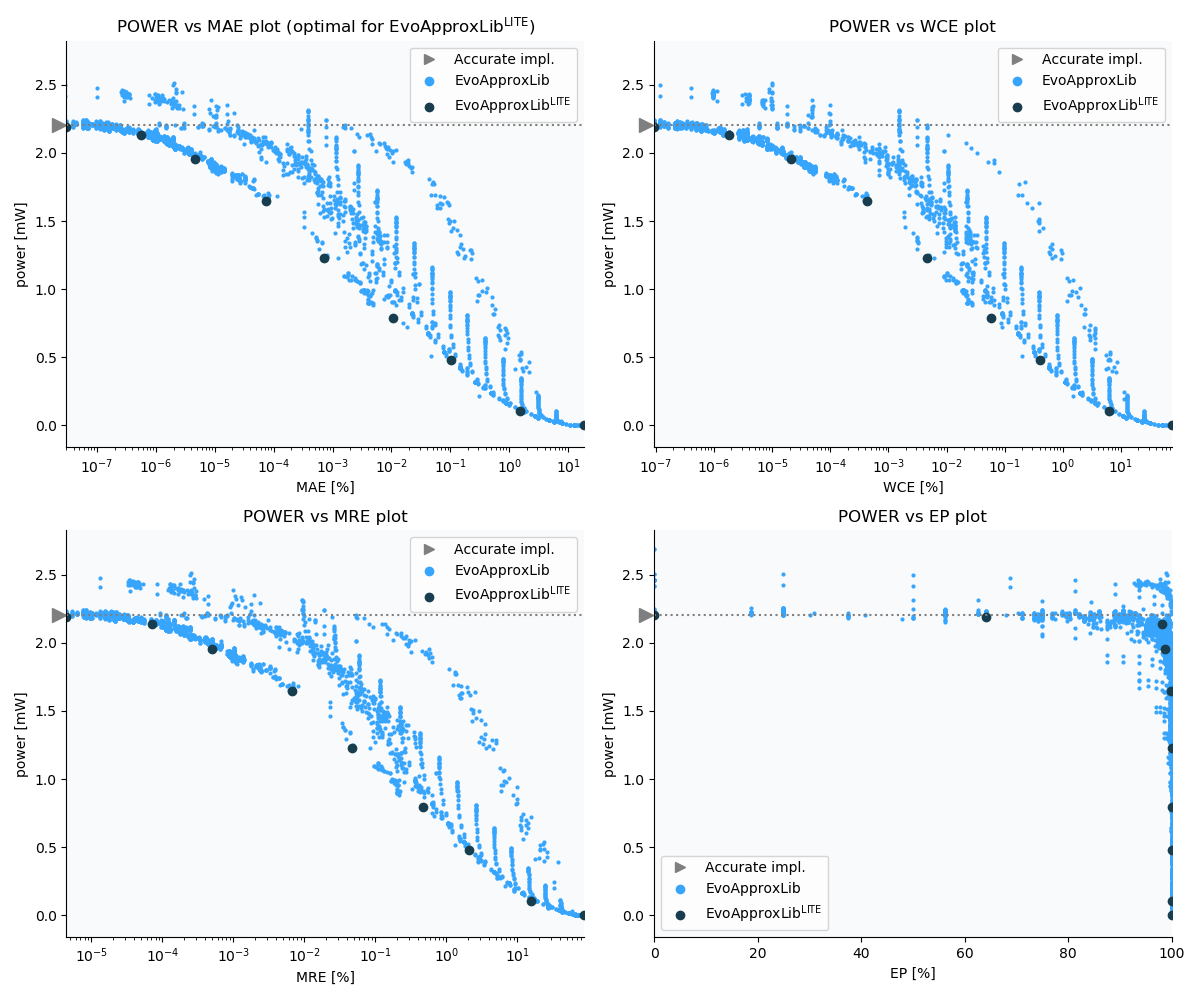

Comparison with the complete EvoApproxLib dataset on various metrics. The first plot shows the performance wrt. the parameters used for pareto filtration. The black dots are the circuits included in this dataset. The blue dots are parameters of the circuits included in the full version of EvoApproxLib. Note that the parameters of the accurate implementation shown in the figure correspond with those exhibiting the lowest power consumption.

REFERENCES
  1. V. Mrazek, Z. Vasicek, L. Sekanina, H. Jiang and J. Han, Scalable Construction of Approximate Multipliers With Formally Guaranteed Worst Case Error in IEEE Transactions on Very Large Scale Integration (VLSI) Systems, vol. 26, no. 11, pp. 2572-2576, Nov. 2018.
